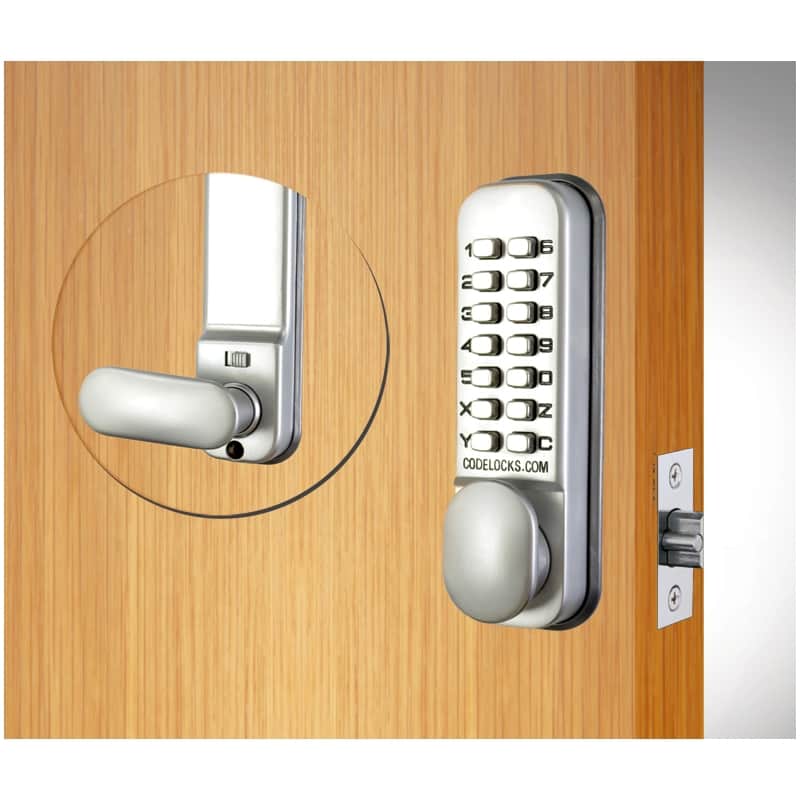

CL155 Mortice Latch

Description

Light duty tubular mortice latch retracts by turning inside lever freely, or the outside knob after code input. Features hold open function. Supplied with a hold open function enabled allowing free entry when required, without having to use a code. The function can be disabled during installation requiring code input to open the door.

• CL0155 & CL155
• Choice of three latches – 50, 60, 70mm
• Suitable for internal and external use
• Dual backplate allows option of hold/non-hold open
• Tumbler alignment for easy code change
• Suitable for low traffic applications
• Available in silver grey or polished brass finish
• Neoprene seals included
• Codelocks Fire Kit Packs can be fitted to latch locks for 30 or 60 minute fire doors. Tested in accordance with BS EN 1634-1:2008
• Body MaterialZinc Alloy
• BrandCodelocks
• Buttons2 x 7
• Code Change MethodTumblers (Off Door)
• CodesSingle code storage – 8,191 non sequential combinations available
• Door Thickness35mm – 60mm (1 3/8″ – 2 3/8″)
• FinishSilver Grey, Polished Brass
• HandedNon handed – locks will suit right or left hand hung doors
• KeypadStainless steel buttons
• Latch Type50mm Mortice Latch, 60mm Mortice Latch, 70mm Mortice Latch
• OrientationVertical
• SpindleFlat spring loaded spindle
• Suitable ForInternal, External
• User TypesCode
