UNION CE3F-SILVER
£12.50
CE3F fixed size 3 rack and pinion door closer.
• Fixed size 3 rack and pinion door closer

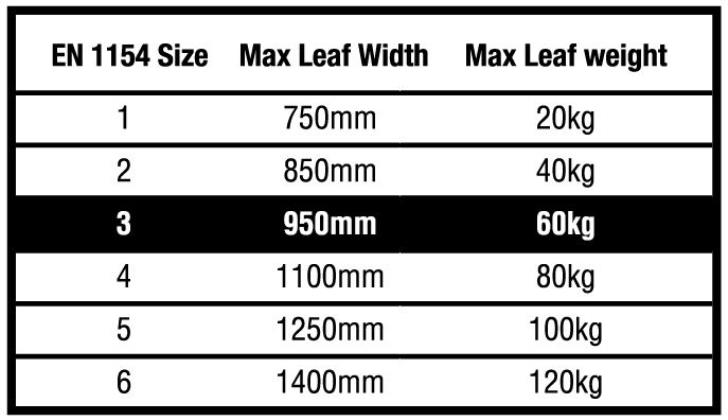

• Maximum door width 950mm EN size 3
Description
Application
Introducing the new CE3F fixed size 3 rack and pinion door closer.
Specification
• Fixed size 3 rack and pinion door closer
• Maximum door width 950mm EN size 3
• 130° maximum angle of opening (controlled closing)
• Adjustable closing speed from 130° open to 15° open
• Adjustable latch action for final 15°

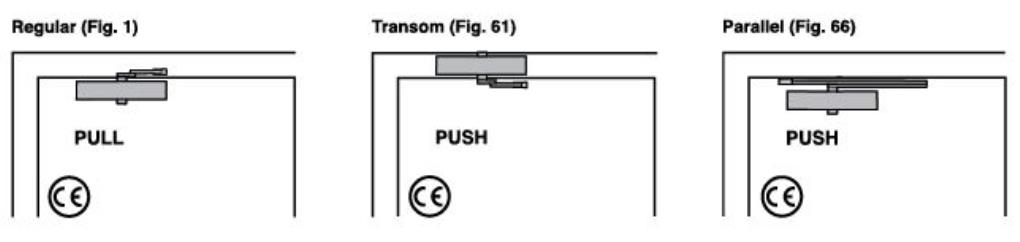

• Adjustable arm set for regular, transom and parallel arm installation
• Additional bracket included for parallel arm mounting
• Silver finish, which allows it to blend in with any application where other traditional door closers are installed.
Standards
• CE Marked to EN 1154 in all 3 mounting positions
| 3 | 8 | 3 | 1 | 1 | 3 |
• Fire rated for timber (FD120) and metal (FD240) fire doors
CE3F_Regular_fig_1_Installation_instructions
